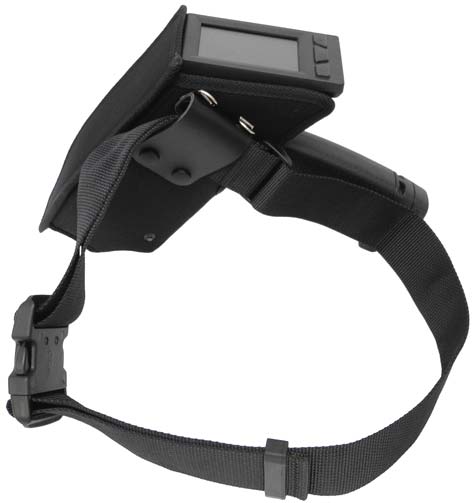

Man fastens his mobile XRF analyzer in the holster.

XRF accessories

Useful accessories for mobile XRF analysis

The right accessories make mobile XRF analysis easier, safer and more convenient.

    Ecco+ barcode scanner

    Barcode information such as sample designations, batch number, manufacturer, aso. can be read with the barcode scanner and then linked to the results of the analysis. Reads 1D codes (barcodes) or 2D codes (QR codes).

    Portable Test Stand (XL2 / XL3)

    Collapsible, ideal for changing locations. Large sample table for exact positioning of samples, with safety shut-off for X-ray tube. Analysis starts only when lid is closed. Chamber size: 19 x 19 x 10 cm (L x W x H), weight 11.7 kg. Suitable for all XL2 and XL3 analyzers.

    Portable Test Stand (XL5)

    Shielded sample chamber; can be folded and easily transported.
    The analyzer is inserted from below in seconds. Samples can be precisely positioned on the sample stage. Analysis starts only when lid is closed.
    In conjunction with the PC software (control from PC), the analyzer can be used as a full-fledged laboratory instrument at various locations. Chamber size: 18 x 19 x 9 cm (L x W x H) Weight 7.7 kg. Mounting bracket suitable for the XL5.

    Backscatter shield

    The ∅ 22 cm backscatter shield protects against scattered radiation when measuring on light specimen matrix. For mobile analyses on aluminum, plastics, wood, gypsum, etc., a backscatter shield must therefore be used Also suitable for fixing small specimens in front of the detector window.

    Sample cups

    Sample cups ∅ 30 mm are versatile. They can be filled with liquid, paste or powdered analytes and sealed with pre-cut, robust foils for sample cups. Mylar film (6 μm) is suitable for analyzing heavy elements in soils, minerals, ores, etc. PP film (4 μm) is suitable for analyzing light elements (Mg, Al, Si, P, S, Cl).

    Protection cover

    The protection cover protects your spectrometer from abrasion and impact marks in harsh environmental conditions. Material: genuine leather with transparent, Velcro closure and UV resistant film over the display. Only compatible with XL2 models.

    Weld seam adapter

    Robust stainless steel slip-on cover for measuring thin weld seams and fillet welds, including the appropriate calibration. Alternatively, the SmallSpot option can also be used.

    Soil mask

    Robust stainless steel slip-on mask for analyzing soil samples directly in the field.
    The Soil-Mask protects the spectrometer from contamination. Compatible with all XL3 models.

    Zebra printer

    Bluetooth capable mobile thermal printer incl. ZBI 2.0 software kit & charger suitable for printing labels and tags (7.62 x 5.08 cm).
