GEMINI

Revolutionary: Two technologies – one analyzer

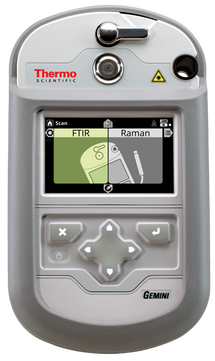

Gemini - The combined FTIR and Raman spectrometer for rapid on-site analysis of hazardous substances.

he time has come for a revolution: The new GEMINI combines for the first time the advantages of Raman-measurements with the FTIR-technology in just one device. While the Raman-technology is excellently suited to identify light solids and liquids through transparent containers without any contact, the FTIR-technology’s advantages lie in the measurement of dark and fluorescent substances. Both technologies complement each other and can be used to mutually confirm results. Thus, the GEMINI allows for an even larger number of hazardous substances to be recognized directly on-site than one device could ever do on its own.

Additional important features

  • Safe use: A “scan assistant” gives clear instructions, thus helping an inexperienced user to assess the sample measured. The display shows very clearly and comprehensibly which measuring method is best suited.
    Both measuring methods can be used in a time-delayed manner. An automated stamp allows for safe FTIR-measurements of pressure-sensitive explosives.
  • Application specific: Profiles can be created on the device for different kind of scenarios as default settings for operations in conjunction with narcotics, explosives, hazardous substances, etc., thus allowing the user to react more quickly. Further profiles may be created. Additionally, substances requiring particular attention or procedures can be assigned to every profile. Thus, the “tagging” function, already known from the FirstDefender RM and FirstDefender RMX, is also available for FTIR-measurements.
  • Shorter response times: Both technologies are immediately ready to use. There are no more waiting times until the second device is operational in order to confirm a result. By simplifying the operation, a faster measurement is possible.
  • Less ballast when in use: Reducing some components made the double spectrometer significantly smaller and lighter than two separate devices. The GEMINI weighs only 1,9 kg.
  • Easy handling: The touchscreen makes the user interface easy to operate. Large keys are also available when protective gloves have to be used. FTIR is now equipped with red and green LED displays directly on the sample unit in order to easily identify if the background or the sample are being measured.

Areas of application

  • Fast identification of unknown substances directly on-site.
  • Illegal drug laboratories
  • Illegal HME laboratories
  • Accidents involving hazardous substances.
  • Everywhere fast results are needed.
Technical details
Principle of operation Non-destructive analysis via Raman-spectroscopy and FTIR
Weight 1.9 kg
Size 256 mm x 146 mm x 61 mm
Laser
(excitation wavelength)
Raman: 785 nm ± 0,5 nm
Spectral range Raman: 250 cm-1 – 2875 cm-1
FTIR: 4.000 cm-1 – 650 cm-1
Spectral resolution Raman: 7 cm-1 – 10,5 cm-1
FTIR: 4 cm-1
Measurement optics Raman: fiber optic probe
FTIR: diamond ATR-crystal
Measurement time Time delayed, manually or automatically
Display Colored, easily legible touch screen display
Data storage
Data transmission SPC, TXT or PDF
US military standard, protection class MIL-STD-810G, IP67
Transport Robust, waterproof plastic case
Operating conditions Temperature range: -20 °C bis +50 °C
Batteries Rechargeable lithium polymer batteries
123A SureFire batteries
External power supply Power supply unit 100 – 240 V AC, 50/60 Hz
Case Dust and spray water proof, robust plastic case
Standard accessories Robust carry case, power supply unit, SureFire batteries, SD memory card, USB card reader, test objects for easy self-testing of the device
